2025 Suzuki KingQuad 500AXi Power Steering SE Camo – 493cc 4WD Utility ATV
Dependable Suzuki Performance With Premium Camouflage Styling
Take on demanding outdoor tasks and exciting off-road adventures with the 2025 Suzuki KingQuad 500AXi Power Steering SE Camo, a premium utility ATV engineered for versatility, durability, and rider comfort.
Whether you’re maintaining rural property, accessing hunting grounds, working on a farm, or exploring recreational trails, this Suzuki four-wheeler delivers a practical combination of responsive engine performance, advanced traction technology, and rugged construction.
Powered by a 493cc fuel-injected four-stroke engine, the KingQuad 500AXi features selectable four-wheel drive, electronic power steering, a Quadmatic automatic transmission, and fully independent suspension.
The Special Edition Camo configuration adds distinctive True Timber Kanati camouflage bodywork, blacked-out aluminum wheels, and protective handguards, creating a utility ATV that combines functional capability with an outdoor-inspired appearance.
493cc Liquid-Cooled Four-Stroke Engine
The 2025 KingQuad 500AXi Power Steering SE Camo is equipped with a 493cc liquid-cooled, four-stroke, SOHC single-cylinder engine.
Its four-valve cylinder head and Suzuki Electronic Fuel Injection system are designed to provide smooth throttle response and strong usable power across a wide operating range.
The engine features a forward-canted cylinder arrangement that helps lower the center of gravity and supports comfortable vehicle handling.
Additional engine features include:
- Electronic Fuel Injection
- Four-valve cylinder head
- Liquid cooling
- Electric starting system
- Electronic ignition
- Wet-sump lubrication
This dependable engine configuration makes the KingQuad suitable for both recreational off-road riding and demanding utility applications.
Quadmatic Automatic CVT Transmission
The Suzuki KingQuad 500AXi features a Quadmatic automatic continuously variable transmission (CVT).
Designed for convenient operation, the transmission eliminates the need for manual gear shifting during normal riding.
Transmission selections include:
- High range
- Low range
- Neutral
- Reverse
Low range provides controlled operation when navigating difficult terrain or performing appropriate towing and utility tasks.
The transmission also incorporates an engine-braking system that helps reduce freewheeling when descending hills.
Selectable 2WD, 4WD, and Differential-Lock 4WD
The 2025 KingQuad 500AXi Power Steering SE Camo features a versatile drivetrain with selectable 2WD, 4WD, and differential-lock 4WD.
Handlebar-mounted controls allow the rider to select the appropriate drive mode for changing terrain.
The system includes a torque-sensing limited-slip front differential for improved traction and manageable steering effort.
When conditions require additional traction, the front differential can be locked.
This drivetrain makes the KingQuad a capable choice for navigating muddy ground, gravel paths, woodland trails, and uneven rural property.
Suzuki Electronic Power Steering
The KingQuad 500AXi Power Steering SE Camo includes Suzuki Electronic Power Steering (EPS).
This system helps reduce steering effort, particularly during low-speed maneuvering and challenging off-road operation.
EPS also helps dampen feedback and impacts transmitted through the handlebars.
Whether maneuvering around trees, navigating narrow trails, or completing property-maintenance tasks, electronic power steering contributes to improved comfort and control.
Fully Independent Front and Rear Suspension
The 2025 Suzuki KingQuad 500AXi features fully independent suspension designed to absorb bumps and support stable handling.
The suspension system includes:
- Front suspension: Independent double wishbone
- Rear suspension: Independent double wishbone
- Front wheel travel: 6.7 inches
- Rear wheel travel: 7.7 inches
- Shock absorbers: Gas-charged and oil-damped
- Spring adjustment: Five-way preload adjustment
This configuration helps the ATV handle uneven trails, rocky surfaces, and changing off-road conditions.
Adjustable spring preload allows riders to configure suspension settings according to appropriate operating needs.
25-Inch Carlisle All-Terrain Tires
The KingQuad 500AXi Power Steering SE Camo rides on 25-inch Carlisle all-terrain tires mounted on lightweight, blacked-out cast-aluminum wheels.
Factory tire sizes include:
- Front: AT25 × 8-12
- Rear: AT25 × 10-12
The tire and wheel combination provides practical traction for suitable dirt, gravel, and off-road surfaces.
The blacked-out aluminum wheels also complement the model’s premium camouflage appearance.
10.2-Inch Ground Clearance
With 10.2 inches of ground clearance, the 2025 Suzuki KingQuad 500AXi provides useful clearance for common trail obstacles such as rocks, roots, and ruts.
Combined with its independent suspension, four-wheel-drive system, and rugged tires, this clearance supports confident operation across a variety of suitable outdoor environments.
1,322-Lb Towing Capacity
The KingQuad 500AXi Power Steering SE Camo offers a manufacturer-rated 1,322-lb towing capacity.
This makes it a practical option for moving compatible utility trailers, supplies, and equipment within Suzuki’s specified operating limits.
The ATV includes a receiver-type trailer hitch mount with a ball mount, hitch pin, and retaining clip.
A trailer ball or towing hook is not included as standard equipment.
Always follow Suzuki’s towing guidelines and observe applicable load restrictions.

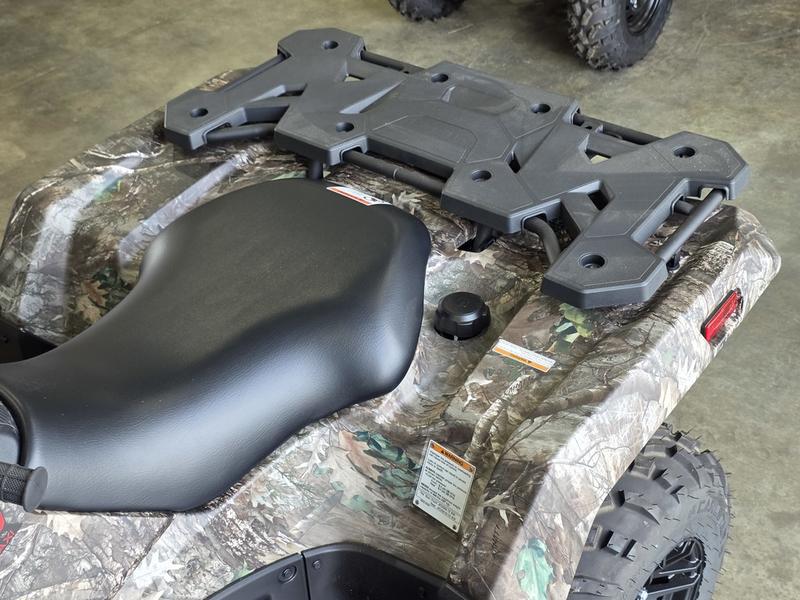

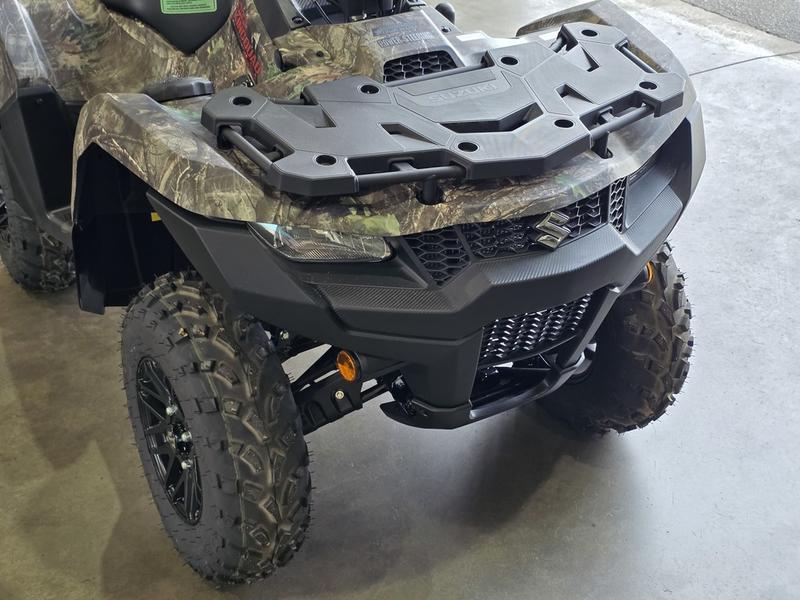

Heavy-Duty Front and Rear Cargo Racks
The 2025 KingQuad 500AXi features rugged front and rear steel-tube cargo racks.
These racks provide useful carrying space for properly secured equipment, including:
- Hunting supplies
- Farm tools
- Ranching equipment
- Camping gear
- Property-maintenance accessories
- Recreational trail essentials
The racks feature a durable wrinkle-texture finish designed to resist scratches and everyday wear.
Always observe the manufacturer’s rack weight limits and secure cargo appropriately.

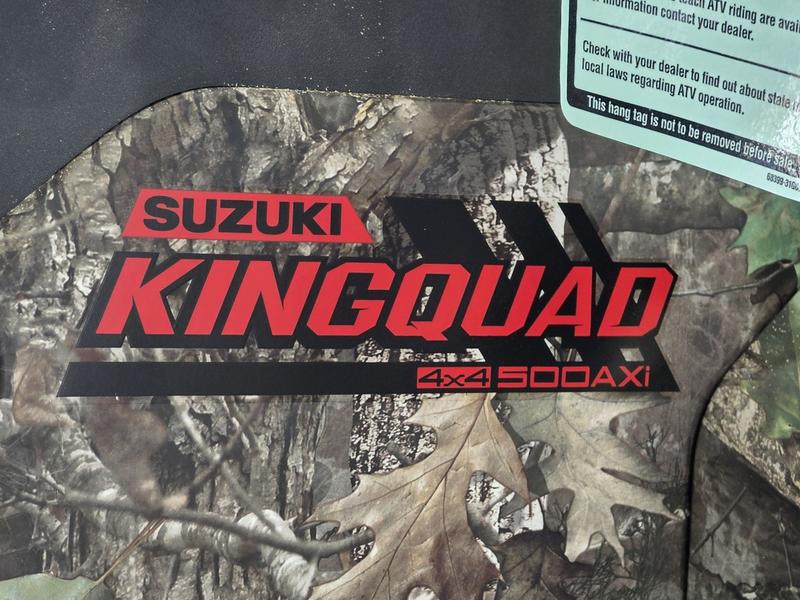

True Timber Kanati Camouflage Special Edition
The 2025 KingQuad 500AXi Power Steering SE Camo features distinctive True Timber Kanati camouflage bodywork.
This rugged styling is especially appealing to hunters, outdoor enthusiasts, and riders who prefer a camouflage utility ATV.
The Special Edition package also includes:
- Blacked-out cast-aluminum wheels
- Protective handguards
- High-clearance fenders
- Durable steel cargo racks
The combination of premium styling and practical equipment makes this Suzuki KingQuad a versatile choice for demanding outdoor activities.
Hydraulic Front Disc Brakes and Sealed Rear Braking System
The KingQuad 500AXi features dual hydraulic disc brakes at the front and a sealed oil-bathed multi-disc braking system at the rear.
The front brakes provide responsive stopping performance, while the sealed rear system is designed for durability and reduced routine maintenance.
This braking configuration supports controlled riding across suitable off-road conditions.

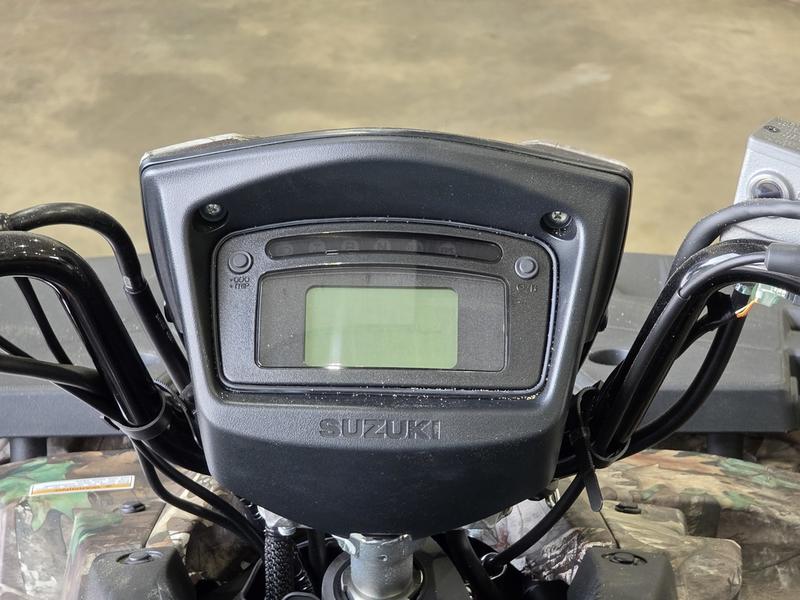

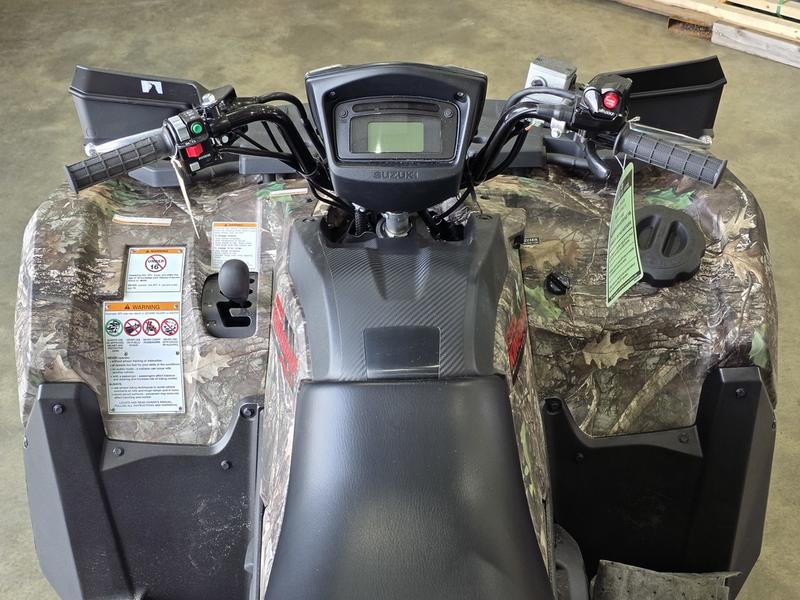

Multifunction LCD Instrument Display
The 2025 Suzuki KingQuad 500AXi Power Steering SE Camo includes a multifunction LCD instrument panel.
The display provides useful operating information, including:
- Digital speedometer
- Odometer
- Twin trip meters
- Engine hour meter
- Clock
- Fuel-level indicator
- Estimated riding range
- Drive-mode indicators
- Gear-position indicators
- Service reminders
- Engine-temperature warning indicators
The instrument panel helps riders monitor vehicle performance and maintenance requirements.
Three-Headlight Lighting System
The KingQuad 500AXi features Suzuki’s practical three-headlight arrangement.
Two headlights are mounted within the front bodywork, while a third handlebar-mounted headlight illuminates the direction of steering.
Additional electrical features include:
- LED taillight
- High-output charging system
- Maintenance-free battery
- Sealed 12V accessory outlet
These features provide useful lighting and electrical convenience for appropriate outdoor activities.
Durable Construction and Practical Maintenance
The Suzuki KingQuad 500AXi is engineered for durability and straightforward maintenance.
Its reinforced steel frame supports demanding utility use, while protective chassis components help shield vulnerable areas from common off-road hazards.
Refined body panels provide convenient access for routine maintenance, including oil-level checks and fuel and air-filter servicing.
Winch-ready mounting provisions and wiring conduit simplify installation of a compatible optional winch.
A winch is not included as standard factory equipment.
Key Features
- 493cc liquid-cooled SOHC four-stroke engine
- Four-valve single-cylinder configuration
- Suzuki Electronic Fuel Injection
- Electric starting system
- Quadmatic automatic CVT transmission
- High and low transmission ranges
- Reverse gear
- Engine-braking system
- Selectable 2WD and 4WD
- Locking front differential
- Torque-sensing limited-slip front differential
- Shaft final drive
- Suzuki Electronic Power Steering
- Fully independent front and rear suspension
- Gas-charged shock absorbers
- Five-way adjustable spring preload
- 25-inch Carlisle all-terrain tires
- Blacked-out cast-aluminum wheels
- 10.2-inch ground clearance
- 1,322-lb towing capacity
- Heavy-duty steel cargo racks
- True Timber Kanati camouflage bodywork
- Protective handguards
- Dual front hydraulic disc brakes
- Sealed oil-bathed rear braking system
- Multifunction LCD instrumentation
- Three-headlight lighting system
- LED taillight
- Sealed 12V accessory outlet
- Winch-ready mounting provisions
- Single-rider seating
Technical Specifications
|
Specification |
Details |
|
Manufacturer |
Suzuki |
|
Model Year |
2025 |
|
Model |
KingQuad 500AXi Power Steering SE Camo |
|
Vehicle Category |
Utility ATV |
|
Engine Displacement |
493cc |
|
Engine Type |
Four-Stroke, SOHC, Four-Valve |
|
Engine Configuration |
Single-Cylinder |
|
Cooling System |
Liquid-Cooled |
|
Bore × Stroke |
87.5 × 82.0 mm |
|
Compression Ratio |
9.9:1 |
|
Fuel System |
Suzuki Electronic Fuel Injection |
|
Starting System |
Electric |
|
Transmission |
Quadmatic Automatic CVT |
|
Transmission Ranges |
High / Low / Neutral / Reverse |
|
Drive System |
2WD / 4WD / Differential-Lock 4WD |
|
Final Drive |
Shaft Drive |
|
Power Steering |
Electronic Power Steering |
|
Seating Capacity |
1 |
|
Front Suspension |
Independent Double Wishbone |
|
Rear Suspension |
Independent Double Wishbone |
|
Front Suspension Travel |
6.7 Inches |
|
Rear Suspension Travel |
7.7 Inches |
|
Shock Absorbers |
Gas-Charged, Five-Way Preload Adjustable |
|
Front Tires |
AT25 × 8-12 |
|
Rear Tires |
AT25 × 10-12 |
|
Wheels |
Blacked-Out Cast Aluminum |
|
Ground Clearance |
10.2 Inches |
|
Overall Length |
84.6 Inches |
|
Overall Width |
47.8 Inches |
|
Overall Height |
50.6 Inches |
|
Wheelbase |
50.6 Inches |
|
Seat Height |
36.2 Inches |
|
Curb Weight |
714 lbs; California Model 716 lbs |
|
Fuel Capacity |
4.6 US Gallons |
|
Towing Capacity |
1,322 lbs |
|
Front Brakes |
Dual Hydraulic Disc |
|
Rear Brakes |
Sealed Oil-Bathed Multi-Disc |
|
Instrumentation |
Multifunction LCD |
|
Headlights |
Two Fender-Mounted and One Handlebar-Mounted |
|
Taillight |
LED |
|
Accessory Outlet |
12V |
|
Factory Color |
True Timber Kanati Camouflage |
|
Factory Winch |
Not Included |
|
Official Top Speed |
60-63 mph |
|
Minimum Recommended Rider Age |
16 Years |
Built for Hunting, Farming, Ranching, and Recreational Trail Riding
The 2025 Suzuki KingQuad 500AXi Power Steering SE Camo combines rugged utility performance with rider-friendly handling and distinctive outdoor styling.
Its 493cc fuel-injected engine, automatic transmission, electronic power steering, and selectable four-wheel-drive system make it suitable for a wide range of recreational and utility applications.
Whether accessing hunting grounds, transporting equipment, maintaining rural property, or exploring off-road trails, the KingQuad 500AXi delivers a practical combination of versatility, durability, and comfort.
Why Choose the 2025 Suzuki KingQuad 500AXi Power Steering SE Camo?
For buyers searching for a 493cc Suzuki utility ATV with electronic power steering, 4WD differential lock, automatic transmission, camouflage styling, and 1,322-lb towing capacity, the 2025 KingQuad 500AXi Power Steering SE Camo offers an appealing combination of performance and practicality.
